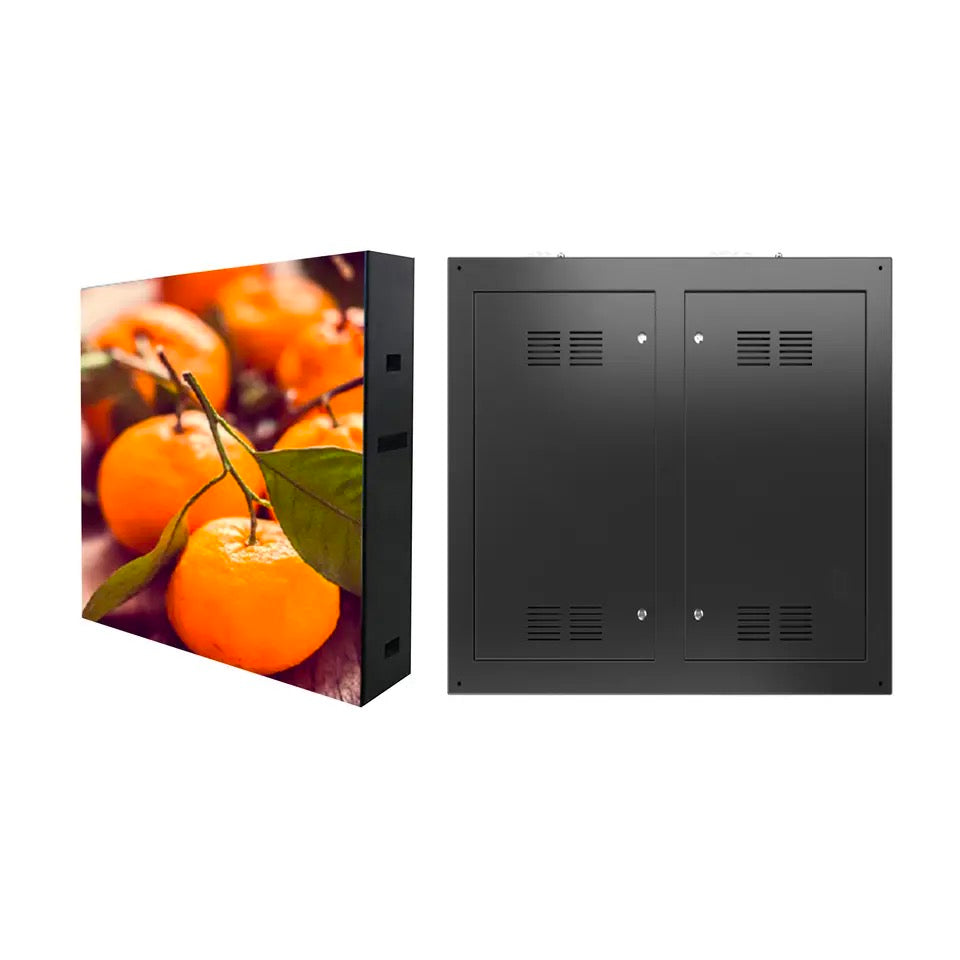

Omni12 Entrepreneur-Series P8 Outdoor LED Signs
P8 Outdoor LED Signage is built for high-impact visibility and all-weather performance, making it ideal for roadside billboards, shopping centers and store fronts. With an 8mm pixel pitch, it strikes the perfect balance between resolution and long-distance readability.
Key Features:
-
Optimal Viewing Distance: 8mm pixel pitch ensures clear, sharp visuals for medium to long-range viewing.
-
High Brightness & Contrast: Delivers vibrant images even in direct sunlight.
-
Weatherproof Design: IP65-rated for protection against rain, dust, and extreme temperatures.
-
Durable Construction: Rugged aluminum or steel cabinet ensures stability and long-term outdoor use.
-
Rear Maintenance Access: Designed for convenient servicing from the back, ideal for pole-mounted installations.
-
Energy Efficient: Smart power management reduces consumption without compromising brightness.
-
Flexible Content Control: Supports remote updates via Wi-Fi or cloud-based systems.
- UL Licensed: Ensuring top-tier safety, reliability, and compliance with North American electrical standards. Ideal for commercial installations requiring certified, fire-resistant, and code-compliant solutions.
P8 Outdoor LED Signage offers a reliable, attention-grabbing solution for brands that need powerful outdoor visibility, day or night.
Contact us for custom size configurations!
Rear-service outdoor LED signs.
Module |
Pixel Pitch (mm) | 8 |
LED Type | SMD 3535 | |
Module Dimension (W*H) (mm) | 320mmx 160mm (12.6inx6.3in) | |
Module Resolution (W*H) (Pixel) | 40x 20 | |
Pixel Density (pixel/㎡) | 15625 |
|
Scan Mode (S) | 5 | |
Cabinet | Cabinet Dimension (W*H) (mm) | 1280x1280 (50.3inx50.3in) |
Cabinet Resolution (W*H) (Pixel) | 160x 160 | |
Cabinet Material | Waterproof Iron | |
Cabinet Weight (lbs) | 66.1 | |
Display | Best Viewing Distance (m) | 8 |
Brightness (nits) | 5500~ 8000 | |
Ingress Protection (Front/Rear) | IP65 | |
Viewing Angle | H:140° V:140° | |
Color Temperature (K) | 3200~ 9500 | |
Gray Level (bit) | 14 | |
Max Power Consumption (W/㎡) | 800 | |
Average Power Consumption (W/㎡) | 350 | |
Refresh Rate (Hz) | 1920~ 3840 | |
Maintenance Method | Rear Maintenance | |
Operating Temperature | -30°~ 80°C | |
Operating Humidity | 10%~ 95%RH | |
Input Voltage | AC110~ 220V±15% 50/ 60Hz | |
MTBF (Hours) | 50000 | |
Life Time (Hours) | 100000 |
