Indoor HD LED Displays

Name: Indoor HD LED Displays
Brand: Omni12 Signs
Price: 7199.0 USD
Availability: InStock

$7,199.00 USD

Sale Sold out

Pixel Pitch 1.86mm (Excellent Resolution) 2mm (Great Resolution) 2.5mm (Good Resolution)

Screen Size (Diagonal) 115 in 146 in 230 in 314 in

Product variants

Quantity

	Product Code	HD1.8	HD2	HD2.5

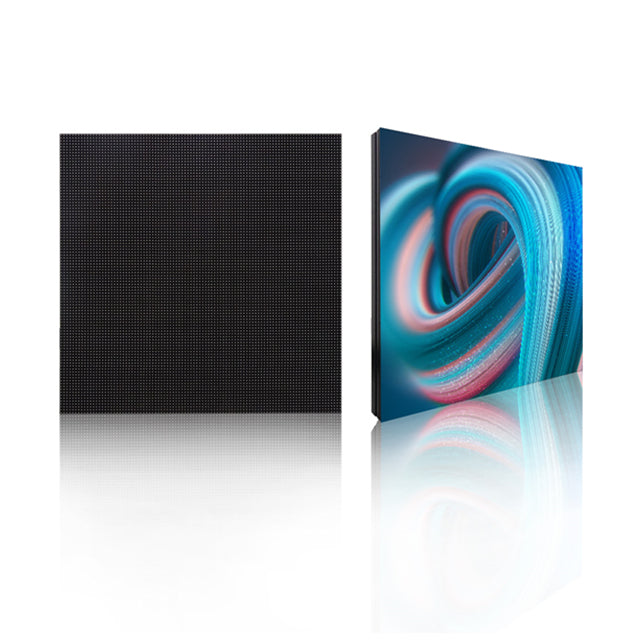

Module	Pixel Pitch (mm)	1.86	2	2.5
	LED Type	SMD 1515	SMD 1515	SMD 1515
	Module Dimension (W*H) (in)	12.6x6.3 (320mmx 160mm)	12.6x6.3 (320mmx 160mm)	12.6x6.3 (320mmx 160mm)
	Module Resolution (W*H) (Pixel)	172x 86	160x 80	128x 64
	Pixel Density (pixel/㎡)	288,906	250,000	160,000
	Scan Mode (S)	43	40	32
Cabinet	Cabinet Dimension (W*H) (in)	25.1x 18.8 (640mmx 480mm)	25.1x 18.8 (640mmx 480mm)	25.1x 18.8 (640mmx 480mm)
	Cabinet Resolution (W*H) (Pixel)	344x258	320x240	256x192
	Cabinet Material	Diecasting Aluminum/Iron	Diecasting Aluminum/Iron	Diecasting Aluminum/Iron
	Cabinet Weight (lbs)	15	15	15
Display	Best Viewing Distance (m)	1.86	2	2.5
	Brightness (nits)	900	900	900
	Ingress Protection (Front/Rear)	IP31	IP31	IP31
	Viewing Angle	H:160° V:160°	H:160° V:160°	H:160° V:160°
	Color Temperature (K)	3200~ 9500	3200~ 9500	3200~ 9500
	Gray Level (bit)	14	14	14
	Max Power Consumption (W/㎡)	600	600	600
	Average Power Consumption (W/㎡)	250	250	250
	Refresh Rate (Hz)	3840	3840	3840
	Maintenance Method	Front Maintenance	Front Maintenance	Front Maintenance
	Operating Temperature	`-20° ~ 60°	`-20° ~ 60°	`-20° ~ 60°
	Operating Humidity	10%~ 95%RH	10%~ 95%RH	10%~ 95%RH
	Input Voltage	AC110~ 220V±15% 50/ 60Hz	AC110~ 220V±15% 50/ 60Hz	AC110~ 220V±15% 50/ 60Hz
	MTBF (Hours)	50000	50000	50000
	Life Time (Hours)	100000	100000	100000
